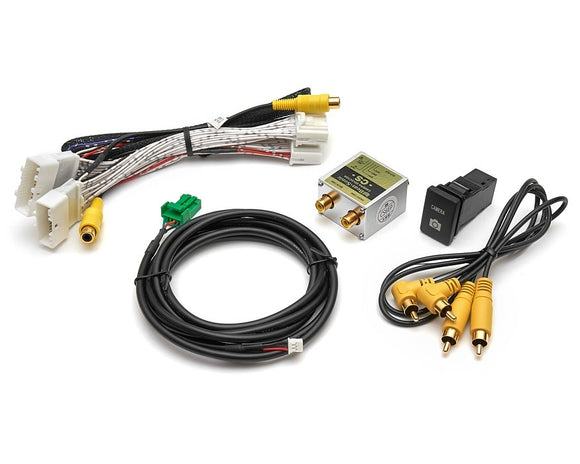

Beat-Sonic CS6EP Front Camera Interface for Select 2014-2020 Toyota Models

Integrate a front camera to display on your factory screen and work together with your backup camera (this product does not include the front camera. It is sold separately.)

Front camera connectivity for select 2014+ Toyota models

By pressing the selector button, the front or the rear camera is displayed for the duration pre-set using the inbuilt programmable timer. The timer is programmable for 5 sec, 10 sec, 15 sec, 20 sec or timer disable (i.e. push on / push off). In addition, the front camera can be programmed to automatically display at speeds less than 9mph to assist when front parking.

Recommended Front Cameras:

 [For standard factory front grill equipped Toyota models]
1. BCAM10W (White / Front license plate mounting-type)
2. BCAM11 (Black / Front grill mounting-type)
[For TRD front grill equipped Toyota models]
Logo embedded front camera for Toyota models

Note for factory navigation equipped models:

Cursor indicating the direction will be temporarily interrupted while the CS6EP is engaged. Current position will be re-calibrated and the cursor will indicate where the vehicle is once the CS6EP is turned off by pressing the supplied button.


Features:

• Ability to switch between front camera, rear camera, and factory Toyota screen
• Ideal for avoiding front obstacles especially for vehicles with front spoilers and/or lowered suspension
• Makes front parking in tight places a breeze
• Ability to view reverse camera at any time while driving
• Press selector switch at any time to display front camera

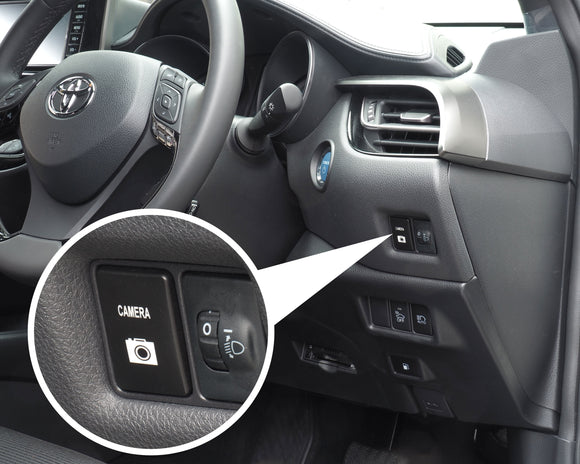

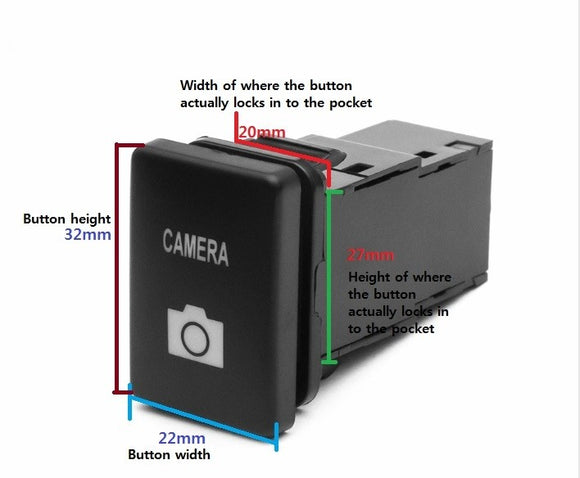

• OE design switch with white LED fits perfectly into vacant switch blank

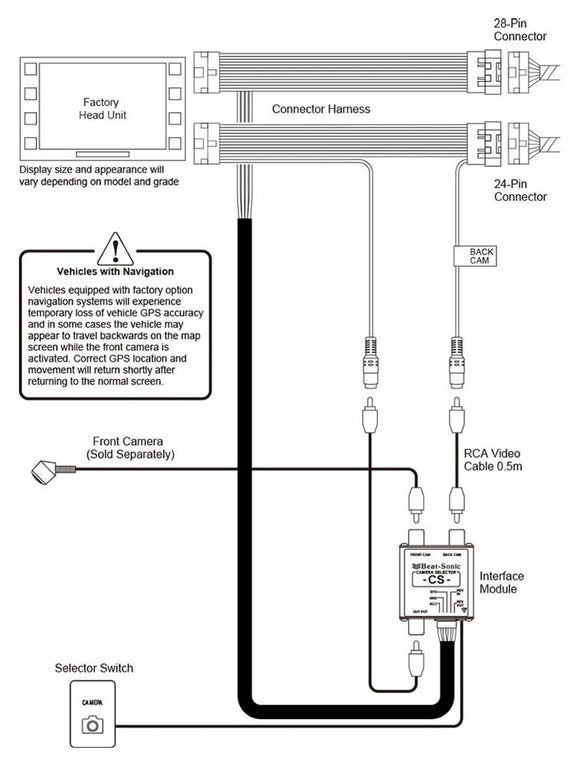

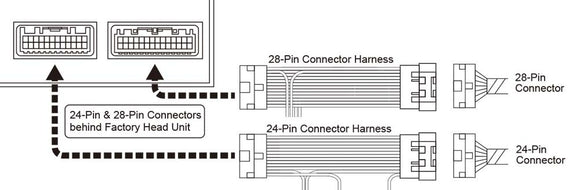

• Plug and Play installation with no modification to the factory harness. (does not include Front Camera sold separately)

Specifications:

• Voltage: DC11V ~ 15V
• Current consumption: 50mA of less
• External dimensions: 40 x 25 x 57mm
• Weight: 55g



Compatibility:

• 2014-2019 Toyota 4Runner
• 2017-2018 Toyota 86
• 2015-2018 Toyota Avalon
• 2014-2017 Toyota Camry
• 2014-2018 Toyota Corolla
• 2014-2019 Toyota Highlander (not compatible with the panoramic view equipped model)
• 2016-2019 Toyota Prius (with 7" screen + navigation)
• 2016-2018 Toyota Prius c
• 2016-2017 Toyota Prius v
• 2017-2019 Toyota Prius Prime (with 7" screen + navigation)
• 2014-2018 Toyota RAV4
• 2014-2019 Toyota Sequoia
• 2014-2019 Toyota Tacoma
• 2014-2019 Toyota Tundra
• 2014-2018 Toyota Yaris

CS6EP Installation Instruction Page

Video: Troubleshooting front Camera Interface
