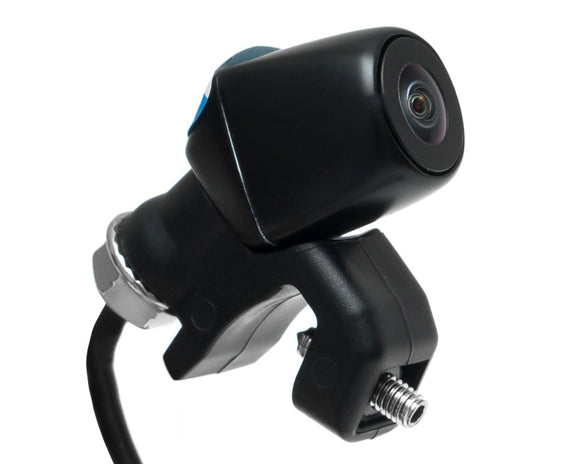

Beat-Sonic BCAM11A Universal Front Camera, Fisheye, Wide Angle Lens, Black

Discretely add a wide-angle, 160 degrees fisheye front view camera that blends in with your front grill

Features:

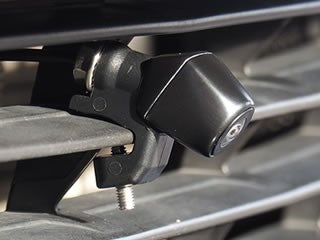

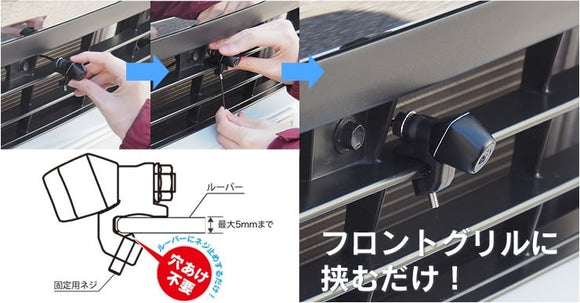

• Easy installation that screws directly on to the front grill
• An automatic electronic iris that works at a great range to cover visibility during the day and night
• Wide-angle lens (viewing angle is 160 degrees) to ensure a wider visibility
• Black color to blend in with your front grill for the stealth look
• Waterproof construction for durability
• Extra long video RCA cable harness for a longer reach
• Made in Japan

Compatibility:

Universal application

Specifications:

• Power supply: DC12v
• Consumption current: 55 ± 5 mA
• Image direction: Orthographic
• Image sensor: ¼ inch color CMOS sensor
• Parking guidelines: None
• Pixels: 640 x 480 - 31 megapixels
• Size: 20（W）ｘ23（H）ｘ25.5（D）mm
• Minimum illumination: 1 Lux
• Angle of view: horizontal: 160 degrees, vertical: 120 degrees
• Video output: NTSC (RCA pin) 1Vpp (75Ω)
• Operating temperature range: -10℃ to 50℃
• Waterproof structure: IP67
• Weight: 40g
• S/N: 48 dB or more

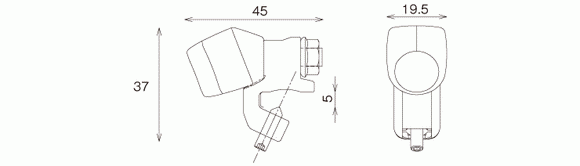

• External dimensions: 19.5 (W) x 37 (H) x 45 (D) mm

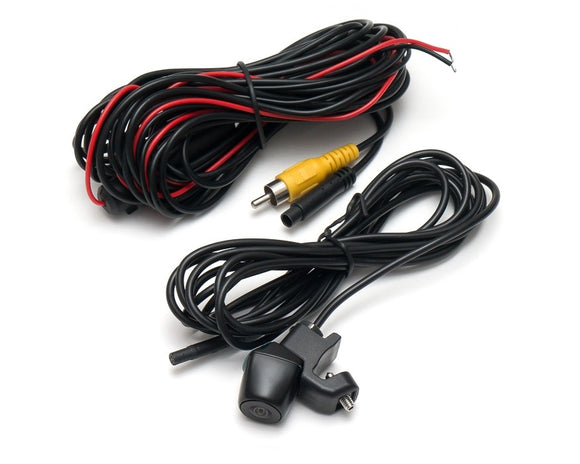

Included in this kit:

• 1 x Camera body
• 1 x Power supply image output cable
• 1 x M6 nut
• 1 x Metal washer
• 1 x Spring washer
• Fiber washers
